Spigot End Connectors

Kynar® PVDF and Natural Polypropylene connections for use with metric and IPS piping systems • Plast-O-Matic “ZSP”

Series ZSP spigot end connectors for high purity deionized water systems, ultra-pure chemical processes, etc.

Features:

  • Spigot sizes 20 mm, 25 mm, 32 mm, 50 mm, 63 mm and 90 mm
  • IPS sizes ½”, ¾”, 1″, 1½”, 2″ and 3″
  • Highest quality materials used
  • Spigots fused at our Cedar Grove, NJ factory by expert technicians
  • Each valve and spigot end individually tested and inspected prior to shipment
  • High purity cleaning procedure available

High purity spigot end connectors for semiconductor, pharmaceutical and other industrial applications involving critical liquid processing. Valves and spigot ends must be ordered as a set and are fused together by Plast-O-Matic.

Series ZSP spigots are compatible with virtually all homopolymer and copolymer piping systems



Materials:

Spigot connectors available in PVDF Kynar® and Natural Unpigmented Virgin Polypropylene. Some sizes use pigmented polypropylene, based on piping specified. For use with metric and IPS piping systems. Designed for BCF and Infra-Red Butt and Socket Fusion Piping.

Design:

High-Purity Spigot-End Connectors of PVDF Kynar® and Polypropylene are available for Plast-O-Matic PressureRegulators, Series RV Relief, By-Pass and Back pressure Valves, FC Flow Controls, and for Series BSD MiniatureAir-Operated Diaphragm Shut-Off Valves. Available in most cases for other standard valves, as well as custom designed products. For further information consult factory.

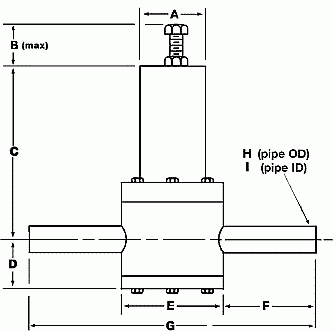

Spigot End Connector Dimensions:

Please note that dimensions for ZSP shown here are for Plast-O-Matic True Blue Pressure Regulators only…for backpressure regulators, diaphragm valves, flow controls, etc. please contact the factory.

Pipe Size mm

 20 25 32 50 63

Pipe Size inches

 1/2″ 3/4″ 1″ 1½” 2″

A

 2.5 2.87 2.87 2.87 2.87

B

 1.75 2.5 2.5 2.5 2.5

C

 4 7.5 7.5 8 9.4

D

 1.75 2.25 2.5 2.75 5.13

E

 2.5 4.5 4.5 5 7

F*

 2 2 2 2.5 2.5

G

 6.5 8.5 8.5 10 12

H

 .790 .980 1.26 1.97 2.48

I1

 .640 .830 1.072 1.752 2.244

H2

 .787 .984 1.260 1.969 2.480

I2

 .638 .835 1.071 1.732 2.244









































*F dimension is identical for all types of valves.
1 Asahi
2 +GF+
3 IPS





Specifications & Ordering Information:

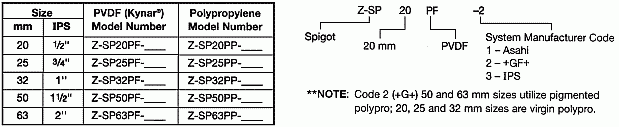

Part numbers for Series ZSP spigot end connectors

















Helpful Links:

Cut Sheet/PDF file for Series ZSP Spigot End Connectors

Series PRE, PR, PRH & PRA High performance True Blue Pressure Regulators.

Series BSD & BSDA PTFE diaphragm Air-actuated shutoff valves for pressure and drain applications.
